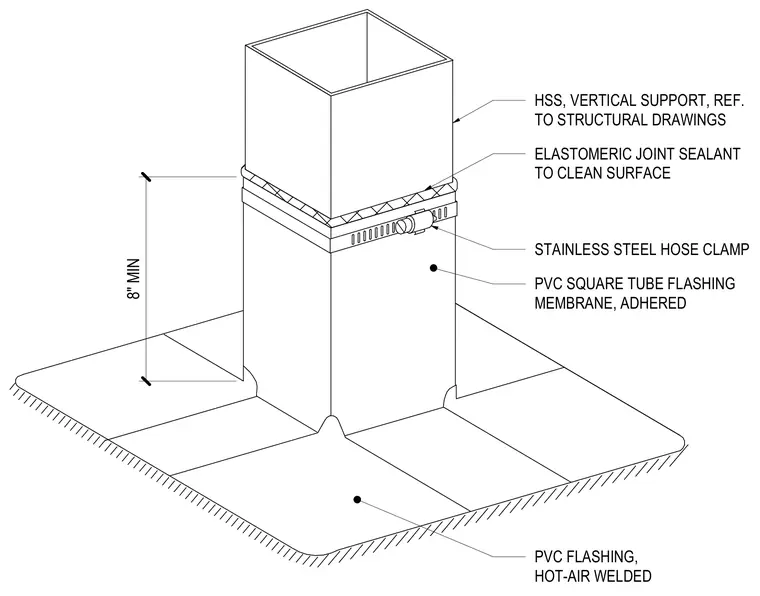

A vertical hollow structural section support penetrates the roof membrane and is sealed with a welded PVC square tube flashing membrane extending a minimum of eight inches up the post. The flashing is secured at its top edge with a stainless steel hose clamp over an elastomeric joint sealant applied to a clean surface. The base flange of the PVC flashing transitions horizontally and is hot-air welded to the surrounding roof membrane.
ELASTOMERIC JOINT SEALANT TO CLEAN SURFACE PVC FLASHING, HOT-AIR WELDED HSS, VERTICAL SUPPORT, REF. TO STRUCTURAL DRAWINGS PVC SQUARE TUBE FLASHING MEMBRANE, ADHERED 8" MIN STAINLESS STEEL HOSE CLAMP
