This tactile sign features raised sans-serif uppercase characters elevated one-thirty-second of an inch and corresponding Grade 2 braille in compliance with local accessibility standards. The character height ranges from one hundred thirty-five percent minimum to one hundred seventy percent maximum relative to the stroke width. Both characters and background maintain a non-glare finish with high contrast, specified as white text on a blue background unless approved otherwise. The sign color and contrast must remain distinctly different from the supporting wall finish.

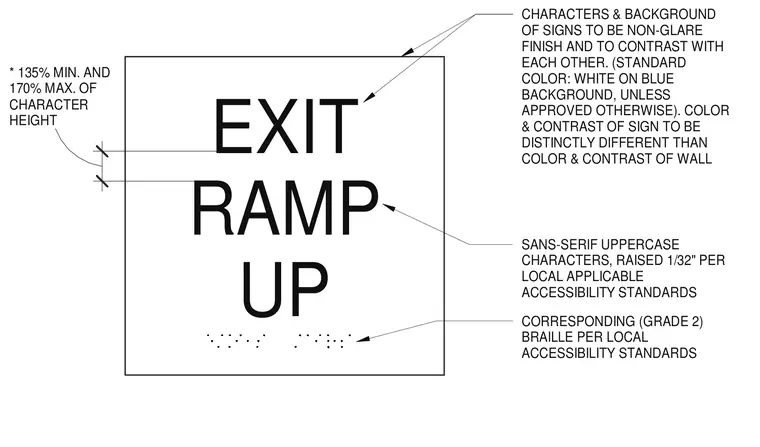

EXIT RAMP UP * 135% MIN. AND 170% MAX. OF CHARACTER HEIGHT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL
