Architectural · A-ZCE9C

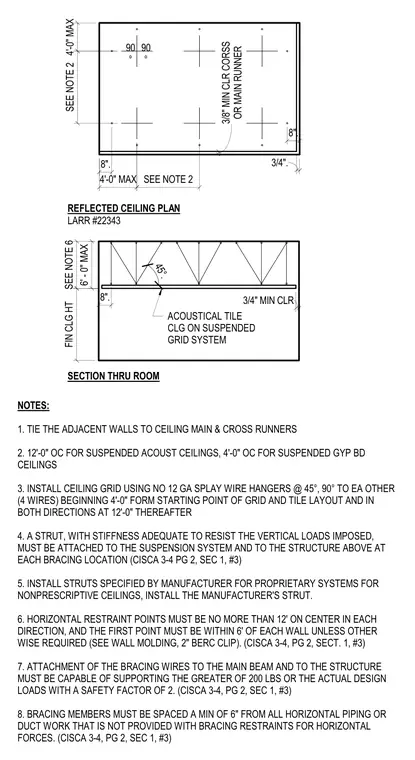

Suspended Ceiling Seismic Bracing Plan and Section

Materials

Elements

Beams Walls Ceilings Bracing Reinforcing

About this detail

Seismic restraint and bracing requirements for suspended acoustical tile ceiling grid systems utilize number 12 gauge splay wire hangers installed at 45 degrees and perpendicular to each other at bracing locations. Struts with adequate stiffness are attached to the suspension system and structure above. Horizontal restraint points are spaced up to twelve feet on center in each direction with specific clearances from walls and adjacent MEP services.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
