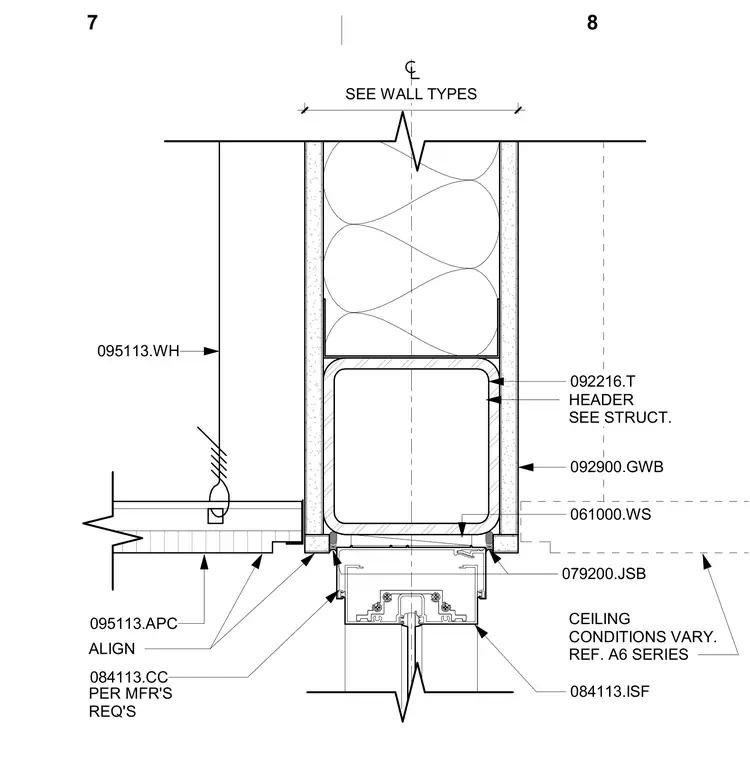

The storefront aluminum framing header is anchored beneath a structural steel tube header and framed wall assembly. Gypsum wallboard clads the exterior and interior stud framing, tied back with metal framing ties. A suspended acoustical ceiling system aligns with the storefront head, incorporating perimeter sealant joints and manufacturer-required trim components. Ceiling conditions vary as referenced in the architectural details.
061000.WS 079200.JSB 079200.JSB 092900.GWB HEADER SEE STRUCT. 095113.APC 095113.WH 092216.T ALIGN CEILING CONDITIONS VARY. REF. A6 SERIES 084113.CC PER MFR'S REQ'S 084113.ISF SEE WALL TYPES 7 8
