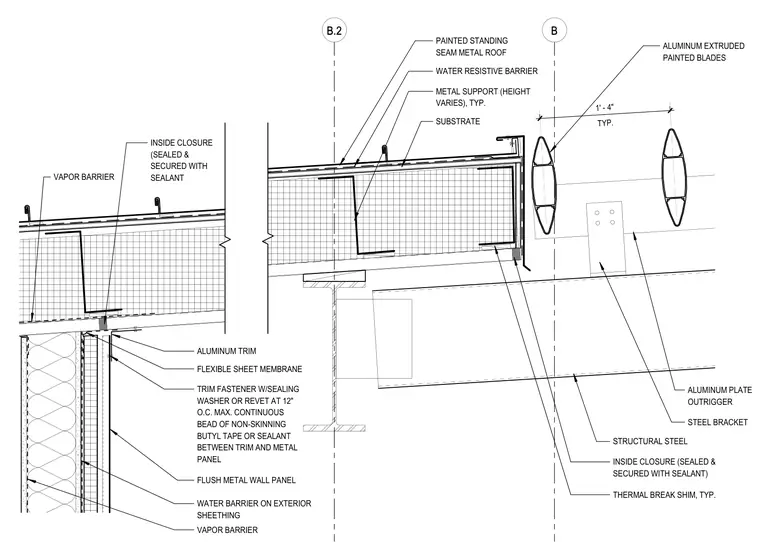

A painted standing seam metal roof sits atop a waterproof substrate and vapor barrier supported by variable metal framing members. The structural steel overhang frame connects to exterior aluminum outrigger plates and painted aluminum extruded blades spaced one foot four inches typically. Trim fasteners with sealing washers or rivets secure the aluminum trim over continuous non-skinning butyl tape or sealant against the flush metal wall panel. Inside closures are sealed and secured with sealant along the roof edge above the flexible sheet membrane, thermal break shims, and water barrier over exterior sheathing.
B B.2 ALUMINUM EXTRUDED PAINTED BLADES ALUMINUM PLATE OUTRIGGER STRUCTURAL STEEL ALUMINUM TRIM TRIM FASTENER W/SEALING WASHER OR REVET AT 12" O.C. MAX. CONTINUOUS BEAD OF NON-SKINNING BUTYL TAPE OR SEALANT BETWEEN TRIM AND METAL PANEL FLUSH METAL WALL PANEL WATER BARRIER ON EXTERIOR SHEETHING INSIDE CLOSURE (SEALED & SECURED WITH SEALANT) STEEL BRACKET PAINTED STANDING SEAM METAL ROOF WATER RESISTIVE BARRIER SUBSTRATE T Y P . 1 ' - 4 " VAPOR BARRIER INSIDE CLOSURE (SEALED & SECURED WITH SEALANT VAPOR BARRIER THERMAL BREAK SHIM, TYP. METAL SUPPORT (HEIGHT VARIES), TYP. FLEXIBLE SHEET MEMBRANE
