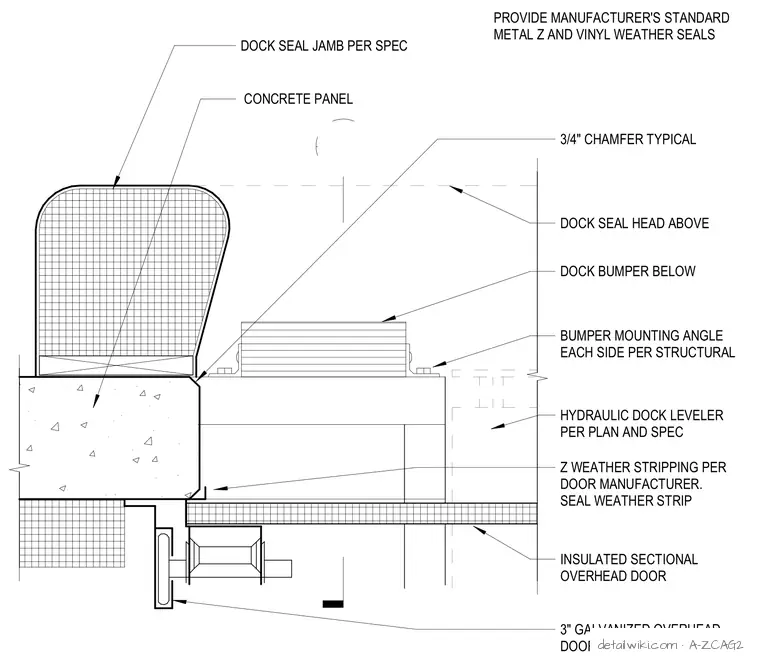

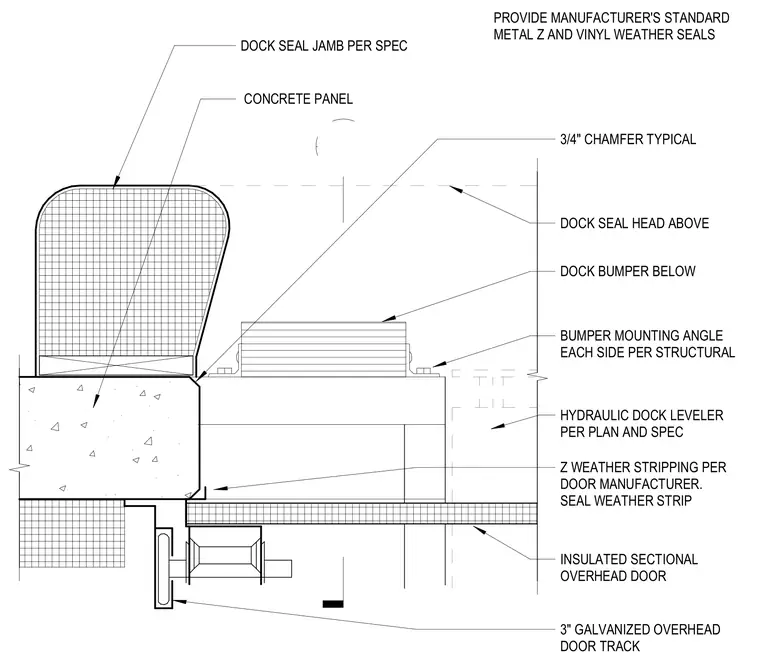

Jamb condition for an insulated sectional overhead door adjacent to a hydraulic dock leveler at a concrete panel wall. The assembly includes a three-inch galvanized overhead door track and Z-shaped weather stripping provided by the door manufacturer. A dock seal jamb is installed per specifications, with the dock seal head located above. The concrete panel includes a three-quarter-inch chamfer at the corner. A dock bumper is mounted to the dock edge using a mounting angle on each side, sized per structural requirements, while the hydraulic dock leveler is installed per the project plans and specifications.
Text on the drawing
CONCRETE PANEL 3" GALVANIZED OVERHEAD DOOR TRACK Z WEATHER STRIPPING PER DOOR MANUFACTURER. SEAL WEATHER STRIP INSULATED SECTIONAL OVERHEAD DOOR 3/4" CHAMFER TYPICAL BUMPER MOUNTING ANGLE EACH SIDE PER STRUCTURAL DOCK BUMPER BELOW HYDRAULIC DOCK LEVELER PER PLAN AND SPEC DOCK SEAL JAMB PER SPEC DOCK SEAL HEAD ABOVE PROVIDE MANUFACTURER'S STANDARD METAL Z AND VINYL WEATHER SEALS 07 A-60008
