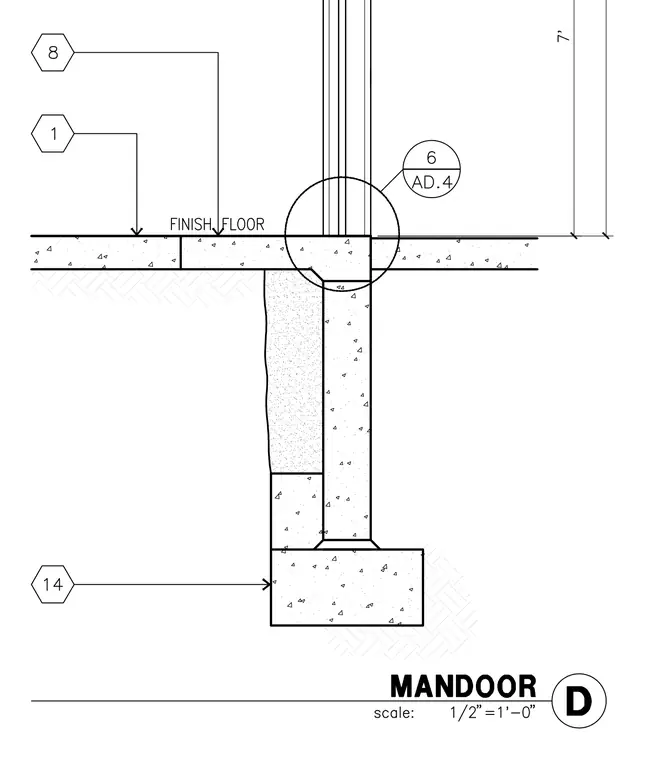

A concrete stem wall supports a finish floor slab and exterior wall assembly above a continuous concrete footing. A perimeter insulation layer is indicated against the upper interior face of the stem wall. A finish floor line is established above the concrete slab-on-grade. Detail callouts reference sheet AD.4 for the wall junction and additional numbered notes for assembly components.
