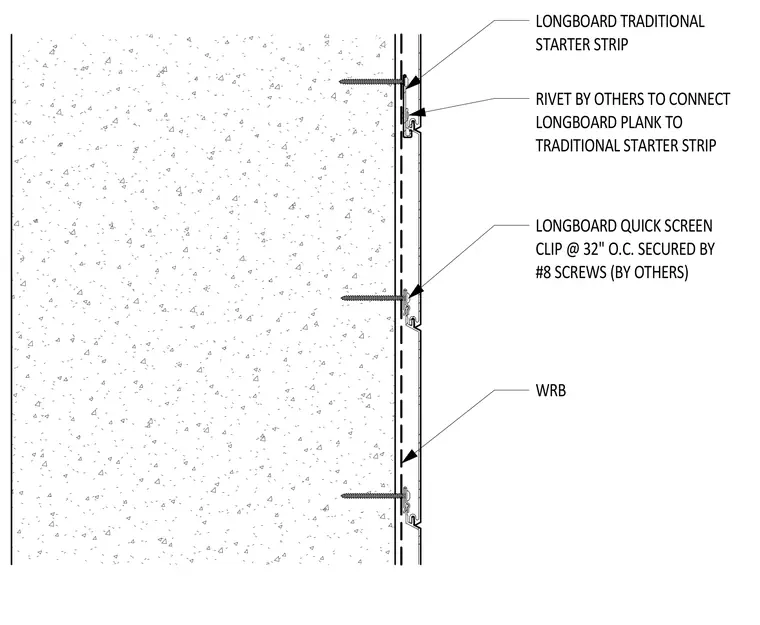

This horizontal wall section details the installation of Longboard 6-inch V-groove metal planks over a substrate. A weather-resistive barrier is applied directly to the backing substrate. Longboard quick screen clips are spaced at 32 inches on center and secured through the barrier with number eight screws. A Longboard traditional starter strip anchors the base of the plank assembly, and rivets connect the plank to the starter strip.
RIVET BY OTHERS TO CONNECT LONGBOARD PLANK TO TRADITIONAL STARTER STRIP LONGBOARD TRADITIONAL STARTER STRIP LONGBOARD QUICK SCREEN CLIP @ 32" O.C. SECURED BY #8 SCREWS (BY OTHERS) WRB
