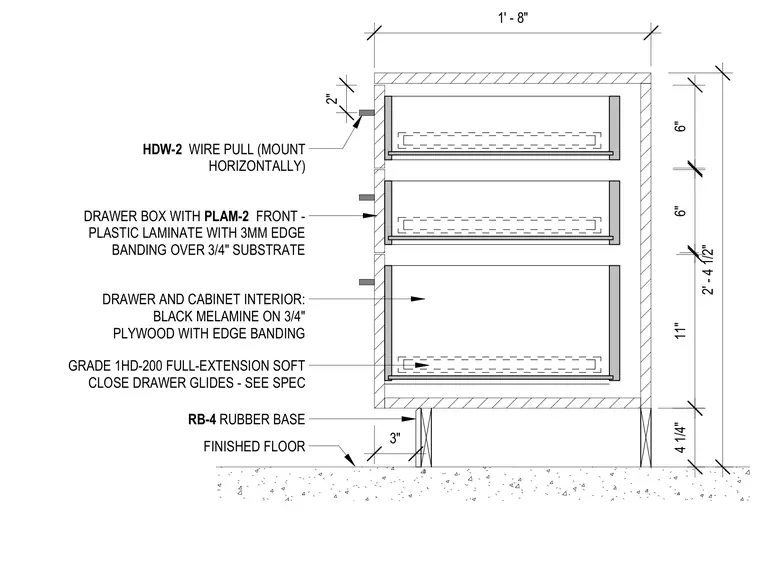

This interior millwork detail shows a reception desk storage cabinet assembly anchored above the finished floor level on a rubber base. The cabinet carcase and drawer interiors feature black melamine applied over three-quarter-inch plywood with edge banding. Drawer boxes are fitted with plastic laminate fronts and three-millimeter edge banding over three-quarter-inch substrates, operated via grade 1HD-200 full-extension soft-close drawer glides. Horizontal wire pulls are mounted to each drawer front as specified. Vertical and horizontal dimensions outline the overall two-foot four-and-a-half-inch cabinet height and individual drawer spacing.
6" DRAWER AND CABINET INTERIOR: BLACK MELAMINE ON 3/4" PLYWOOD WITH EDGE BANDING RB-4 RUBBER BASE DRAWER BOX WITH PLAM-2 FRONT - PLASTIC LAMINATE WITH 3MM EDGE BANDING OVER 3/4" SUBSTRATE HDW-2 WIRE PULL (MOUNT HORIZONTALLY) FINISHED FLOOR GRADE 1HD-200 FULL-EXTENSION SOFT CLOSE DRAWER GLIDES - SEE SPEC 6" 2' - 4 1/2" 4 1/4" 11" 1' - 8" 3" 2"
