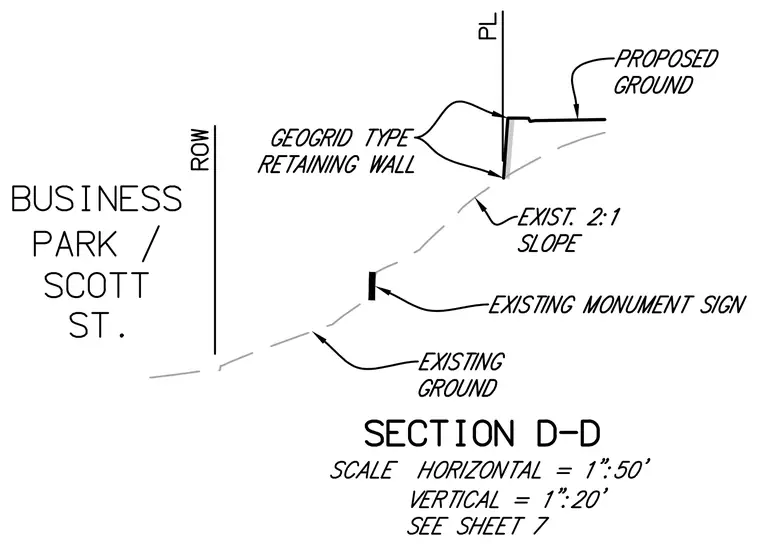

A geogrid type retaining wall is constructed adjacent to the property line, retaining the proposed ground against an existing 2:1 slope. The right-of-way and Business Park / Scott St. are indicated to the left. An existing monument sign is positioned further down the existing ground slope. The section is drawn at a horizontal scale of 1 inch to 50 feet and a vertical scale of 1 inch to 20 feet.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
