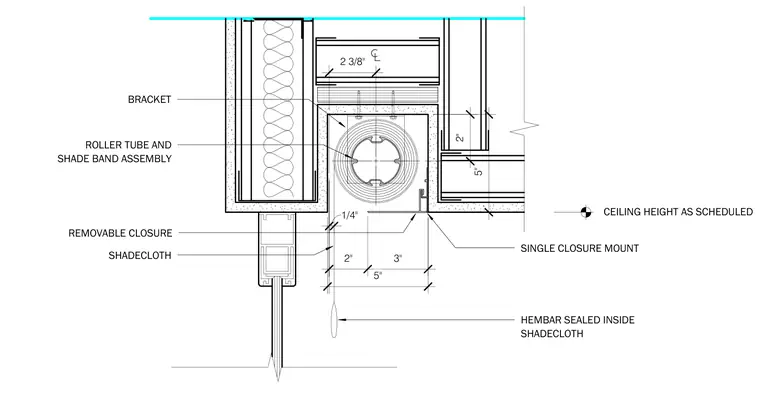

A motorized window shade pocket is integrated into a framed ceiling assembly. The roller tube and shade band assembly is supported by a mounting bracket secured within a recessed pocket enclosure. A removable closure and single closure mount finish the ceiling interface, allowing the shadecloth to drop vertically with a hembar sealed inside its lower edge.
CEILING HEIGHT AS SCHEDULED SINGLE CLOSURE MOUNT HEMBAR SEALED INSIDE SHADECLOTH ROLLER TUBE AND SHADE BAND ASSEMBLY REMOVABLE CLOSURE SHADECLOTH BRACKET 2 3/8" 1/4" 2" 3" 5" 2" 5"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
