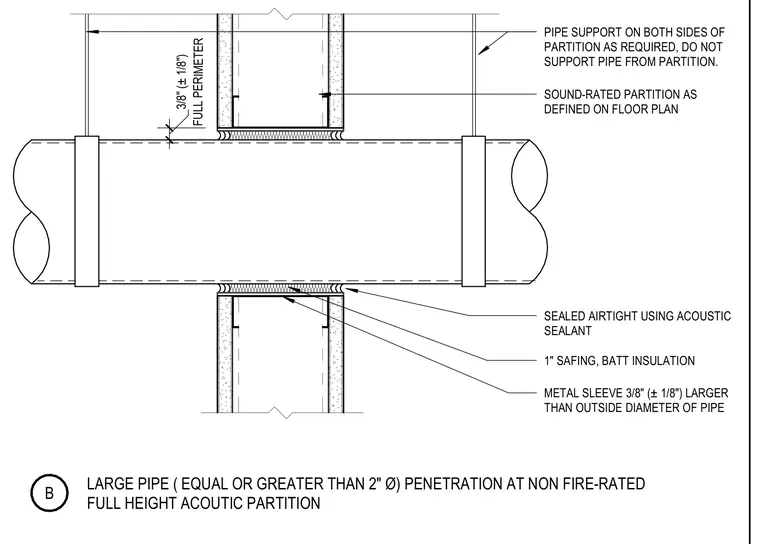

A metal sleeve sizing three-eighths inch larger than the outside diameter of the pipe penetrates the non-fire-rated full-height acoustic partition, leaving a three-eighths-inch gap around the full perimeter. One inch of safing and batt insulation packs the annular space between the sleeve and partition. Acoustic sealant hermetically seals the perimeter airtight on both sides. Independent pipe supports on both sides carry the load, keeping the pipe isolated from the partition structure.
FULL PERIMETER 3/8" (± 1/8") B LARGE PIPE ( EQUAL OR GREATER THAN 2" Ø) PENETRATION AT NON FIRE-RATED FULL HEIGHT ACOUTIC PARTITION METAL SLEEVE 3/8" (± 1/8") LARGER THAN OUTSIDE DIAMETER OF PIPE SOUND-RATED PARTITION AS DEFINED ON FLOOR PLAN 1" SAFING, BATT INSULATION SEALED AIRTIGHT USING ACOUSTIC SEALANT PIPE SUPPORT ON BOTH SIDES OF PARTITION AS REQUIRED, DO NOT SUPPORT PIPE FROM PARTITION.
