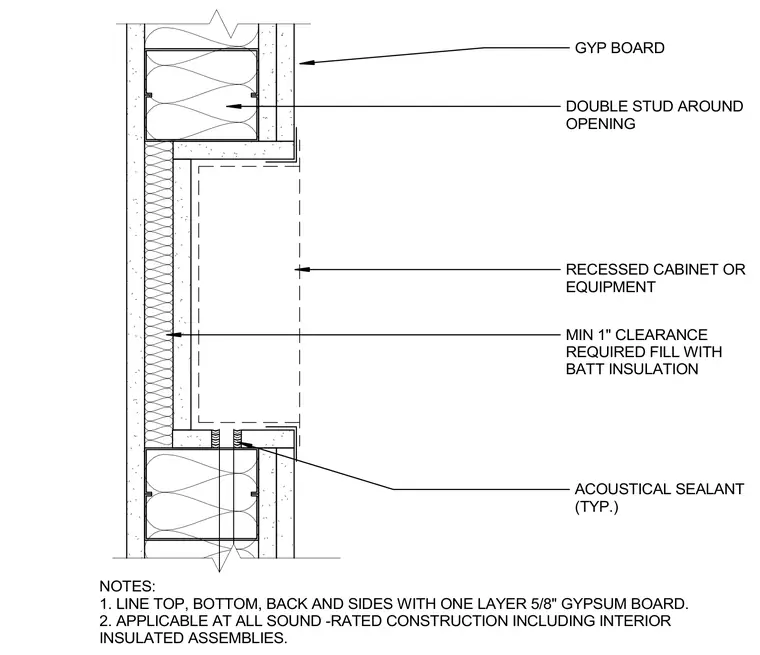

This interior partition detail shows a recessed cabinet or equipment enclosure framed with double studs around the opening and finished with gypsum board. The cavity requires a minimum one-inch clearance filled with batt insulation. The top, bottom, back, and sides are lined with one layer of five-eighths-inch gypsum board. Acoustical sealant is applied typically at joints to maintain sound ratings in insulated assemblies.
GYP BOARD RECESSED CABINET OR EQUIPMENT DOUBLE STUD AROUND OPENING MIN 1" CLEARANCE REQUIRED FILL WITH BATT INSULATION ACOUSTICAL SEALANT (TYP.) NOTES: 1. LINE TOP, BOTTOM, BACK AND SIDES WITH ONE LAYER 5/8" GYPSUM BOARD. 2. APPLICABLE AT ALL SOUND -RATED CONSTRUCTION INCLUDING INTERIOR INSULATED ASSEMBLIES.
