No Smoking Signage

Elements

About this detail

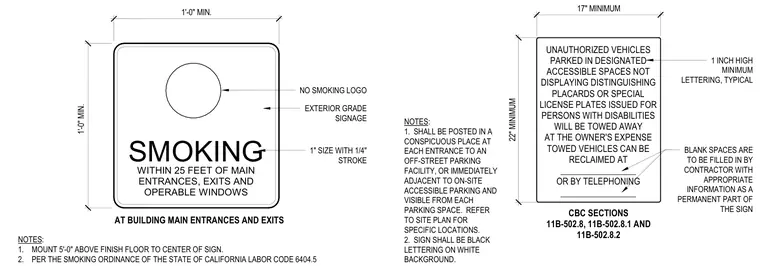

Exterior grade signage layouts specify a minimum 12-inch by 12-inch no smoking sign with a black logo, black lettering, and a white background mounted five feet above the finish floor at building main entrances, exits, and operable windows per California Labor Code 6404.5. Accompanying accessible parking signage measures 17 inches minimum by 22 inches minimum and includes required towing enforcement wording with blank spaces for contractor fill-in per California Building Code sections 11B-502.8, 11B-502.8.1, and 11B-502.8.2.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
