Canopy Junction at Metal Panel and Curtain Wall

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Windows Curtain Walls Facades / Cladding Parapets Canopies Ceilings Waterproofing / Flashing Insulation Anchors / Embeds

About this detail

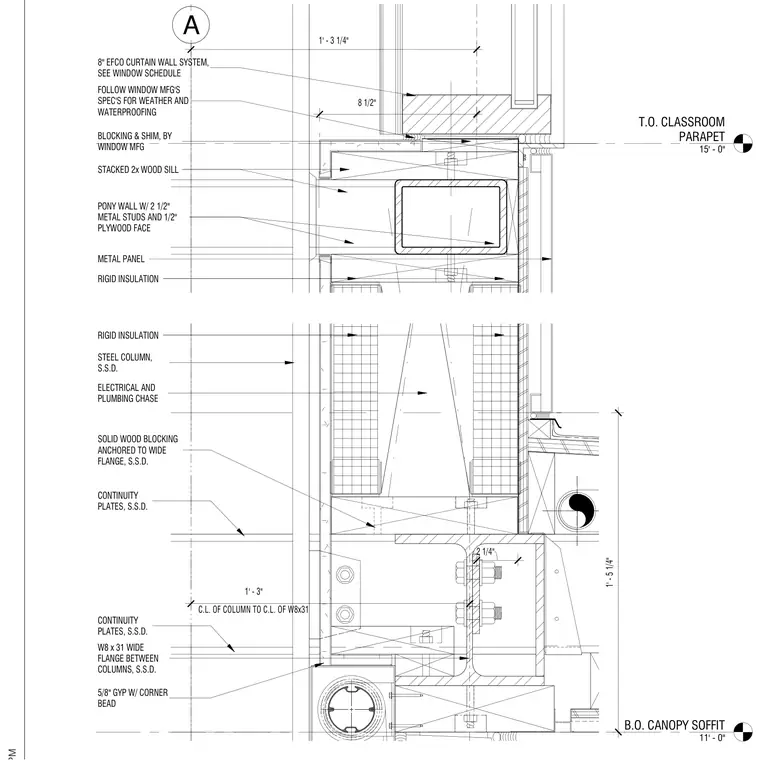

A structural steel column and W8x31 wide flange beam support a canopy and a pony wall framed with two-and-a-half-inch metal studs and a half-inch plywood face. Solid wood blocking is anchored to the wide flange with continuity plates and stacked two-by wood sills supporting an eight-inch EFCO curtain wall system. Rigid insulation lines the exterior alongside metal panels, while interior finishes include five-eighths-inch gypsum board with a corner bead. The assembly accommodates an electrical and plumbing chase within the framing depth, with dimensions locating the centerline of the column one foot three inches from the centerline of the W8x31 beam.
