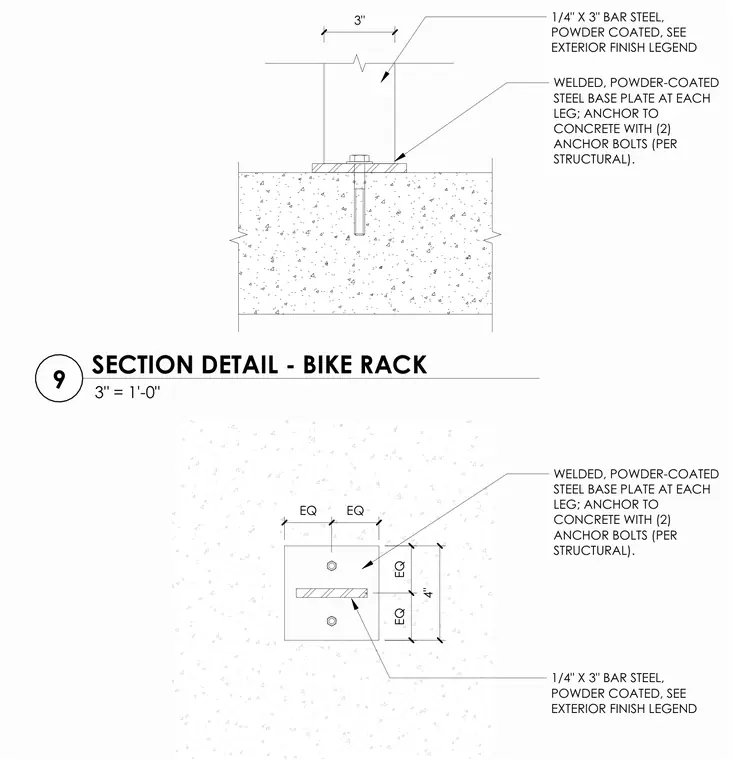

A powder-coated 1/4" x 3" bar steel bike rack leg connects to a concrete slab via a welded steel base plate. The base plate is anchored to the concrete using two anchor bolts sized per structural engineering requirements. The complete assembly provides a secure surface-mounted bicycle parking fixture.
1/4" X 3" BAR STEEL, POWDER COATED, SEE EXTERIOR FINISH LEGEND 1/4" X 3" BAR STEEL, POWDER COATED, SEE EXTERIOR FINISH LEGEND 4" EQ EQ EQ EQ 3" WELDED, POWDER-COATED STEEL BASE PLATE AT EACH LEG; ANCHOR TO CONCRETE WITH (2) ANCHOR BOLTS (PER STRUCTURAL). WELDED, POWDER-COATED STEEL BASE PLATE AT EACH LEG; ANCHOR TO CONCRETE WITH (2) ANCHOR BOLTS (PER STRUCTURAL). 3" = 1'-0" 9 SECTION DETAIL - BIKE RACK
