Metal Stair Connection at Concrete Filled Metal Deck Floor

Materials

Elements

About this detail

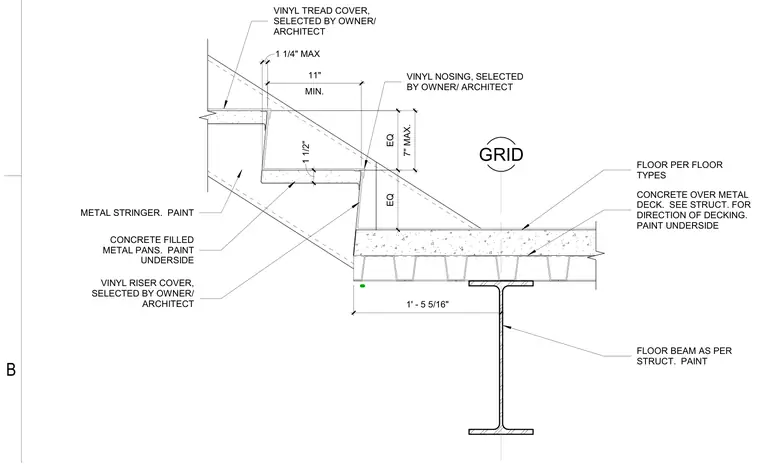

Concrete filled metal pans form the stair treads and risers, supported by a painted metal stringer and finished with a vinyl tread cover, riser cover, and vinyl nosing selected by the owner or architect. The stair connects to a floor assembly consisting of concrete over metal deck supported by a structural floor beam sized per structural drawings. The stair configuration features an eleven-inch minimum tread depth, seven-inch maximum riser height, and a one and one-quarter inch maximum nosing projection. The underside of the concrete over metal deck and the floor beam are painted, with the decking direction coordinated with structural drawings.
