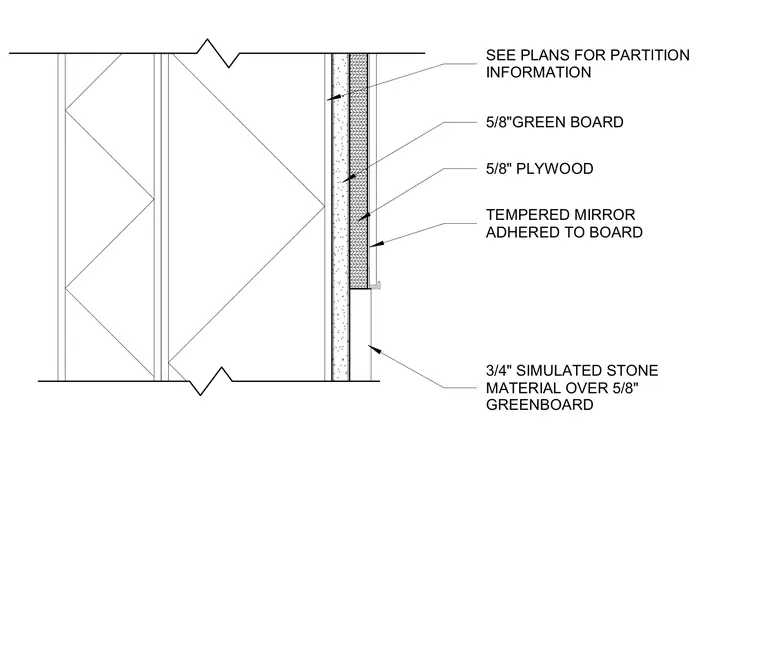

A tempered mirror is adhered to a five-eighths-inch plywood substrate backed by five-eighths-inch green board mounted on wood stud framing. Below the mirror, a three-quarter-inch simulated stone material over five-eighths-inch green board forms the backsplash wainscot. Partition framing details are sized per the architectural floor plans.
TEMPERED MIRROR ADHERED TO BOARD 5/8"GREEN BOARD 3/4" SIMULATED STONE MATERIAL OVER 5/8" GREENBOARD SEE PLANS FOR PARTITION INFORMATION 5/8" PLYWOOD
