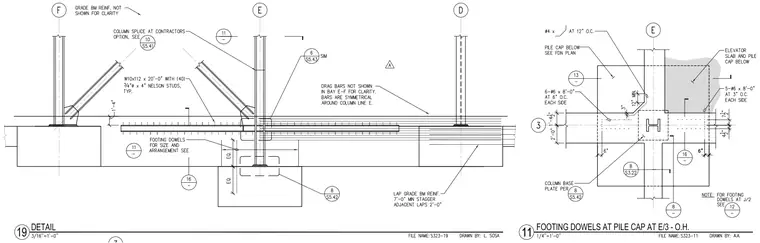

A structural steel column and brace assembly ties into concrete pile caps and grade beams using anchor bolts, base plates, and footing dowels. The left view shows W10x112 braces framing into columns with 3/4-inch diameter by 4-inch Nelson studs typical, alongside drag bars and lap grade beam reinforcement. The right view details a column base plate over a pile cap with elevator slab conditions, configured with #4 bars at 12 inches on center and 6-#6 by 8-foot bars at 6 inches on center each side.
