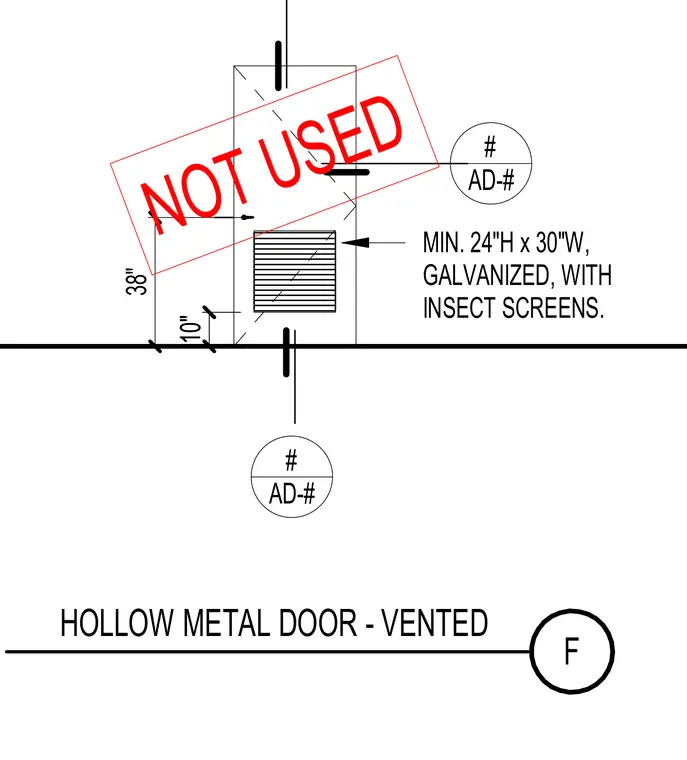

A hollow metal door includes a vented opening measuring twenty-four inches high by thirty inches wide, positioned thirty-eight inches above the bottom threshold with a ten-inch clearance from the lower frame. The unit is constructed from galvanized metal and includes integrated insect screens.
F HOLLOW METAL DOOR - VENTED 38" MIN. 24"H x 30"W, GALVANIZED, WITH INSECT SCREENS. 10" # AD-# # AD-# 10" NOT USED
