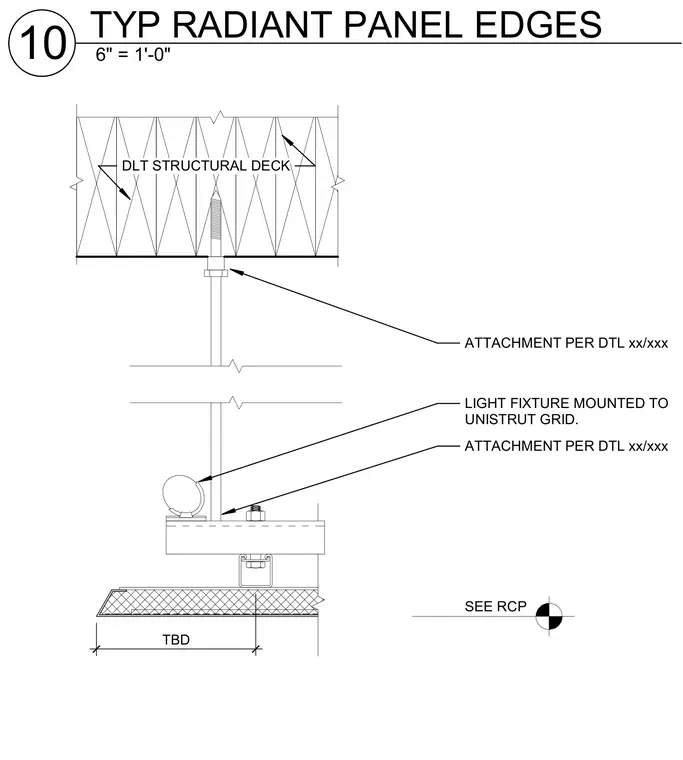

Radiant panel edges are suspended beneath a dowel-laminated timber structural deck utilizing a threaded rod attachment anchored to the deck. A light fixture is mounted directly to a unistrut grid supported by the hanging assembly. Attachment methods and specific spacing dimensions are coordinated per the reflected ceiling plan and related connection details.
DLT STRUCTURAL DECK SEE RCP ATTACHMENT PER DTL xx/xxx LIGHT FIXTURE MOUNTED TO UNISTRUT GRID. TBD ATTACHMENT PER DTL xx/xxx 6" = 1'-0" 10 TYP RADIANT PANEL EDGES
