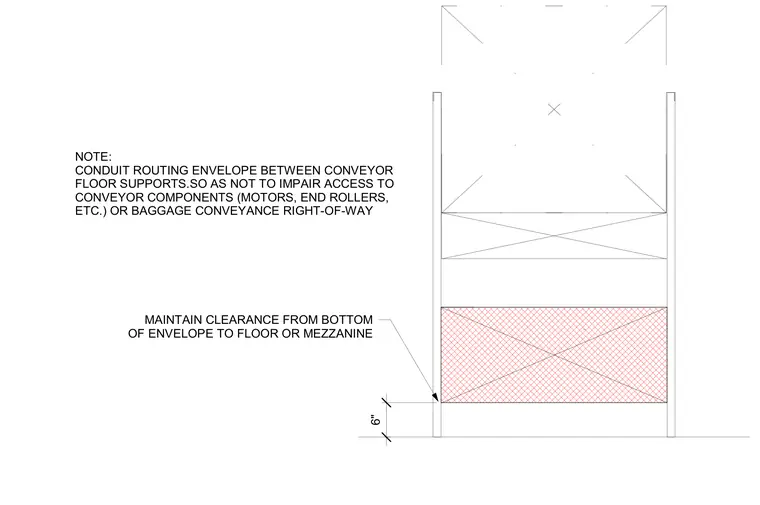

Conduit routing envelope positioned between conveyor floor supports to maintain access to conveyor components like motors and end rollers as well as the baggage conveyance right-of-way. Maintain a six inch clearance from the bottom of the envelope to the floor or mezzanine.
NOTE: CONDUIT ROUTING ENVELOPE BETWEEN CONVEYOR FLOOR SUPPORTS.SO AS NOT TO IMPAIR ACCESS TO CONVEYOR COMPONENTS (MOTORS, END ROLLERS, ETC.) OR BAGGAGE CONVEYANCE RIGHT-OF-WAY 6" MAINTAIN CLEARANCE FROM BOTTOM OF ENVELOPE TO FLOOR OR MEZZANINE
