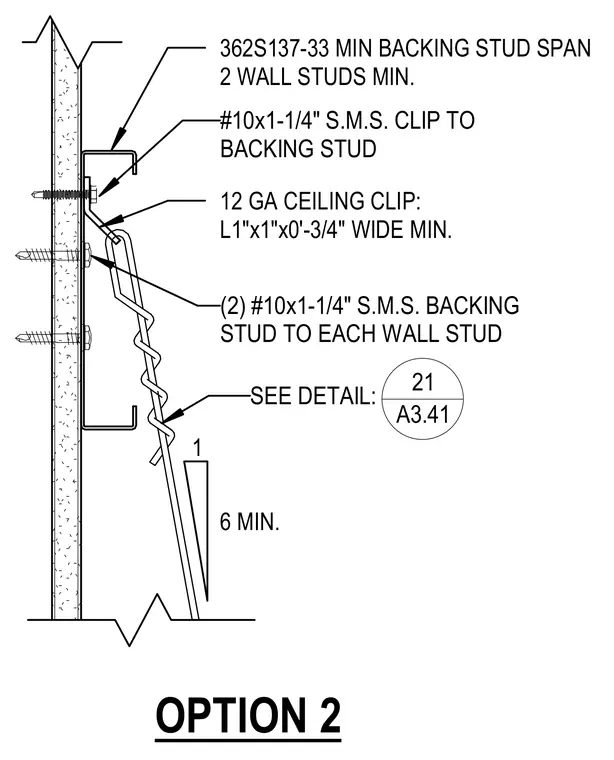

A 362S137-33 minimum backing stud spans a minimum of two wall studs and is secured using a twelve gauge ceiling clip measuring one inch by one inch by three-quarters of an inch wide minimum. The ceiling clip attaches to the backing stud with one number ten by one-and-one-quarter-inch sheet metal screw. Two number ten by one-and-one-quarter-inch sheet metal screws fasten the backing stud to each wall stud.
362S137-33 MIN BACKING STUD SPAN 2 WALL STUDS MIN. 12 GA CEILING CLIP: L1"x1"x0'-3/4" WIDE MIN. 1 6 MIN. OPTION 2 #10x1-1/4" S.M.S. CLIP TO BACKING STUD (2) #10x1-1/4" S.M.S. BACKING STUD TO EACH WALL STUD SEE DETAIL: 21 A3.41
