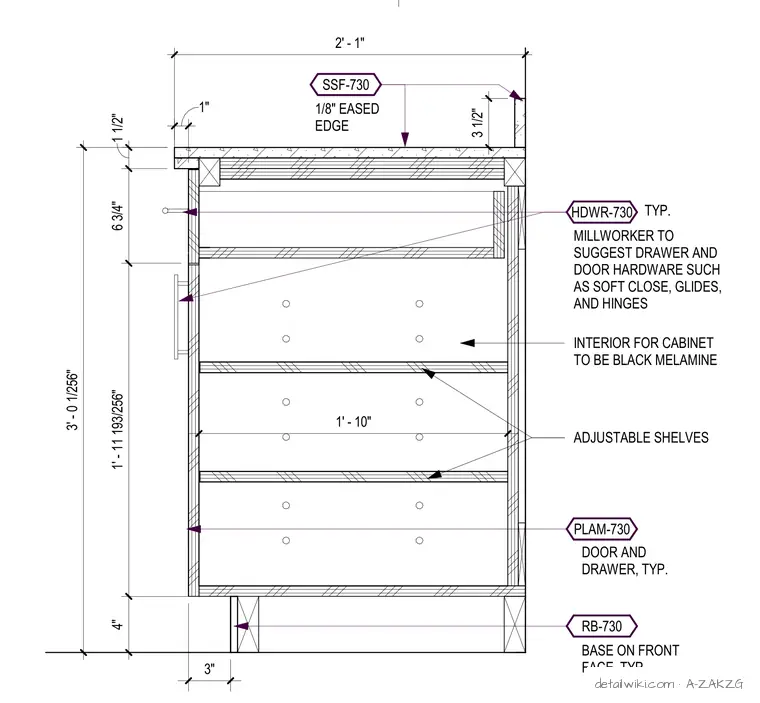

This millwork section details a cabinet assembly with a total height of 3'-0 1/256". The top surface is finished with a 1/8" eased edge. The cabinet interior is specified as black melamine, featuring adjustable shelves supported by standard shelf pins. The front face includes a drawer assembly with hardware specified as soft-close glides and hinges per the millworker's suggestion. The unit is supported by a 4" high recessed base set back 3" from the front face.
