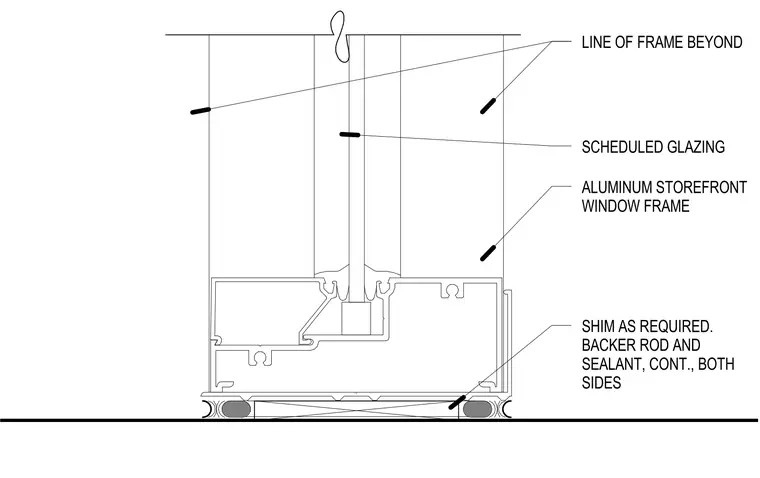

An aluminum storefront window frame is positioned with shims as required for proper alignment. Continuous backer rod and sealant are applied on both sides of the frame joint. The scheduled glazing is installed within the aluminum framing profile, with the line of the frame extending beyond.
SHIM AS REQUIRED. BACKER ROD AND SEALANT, CONT., BOTH SIDES ALUMINUM STOREFRONT WINDOW FRAME LINE OF FRAME BEYOND SCHEDULED GLAZING
