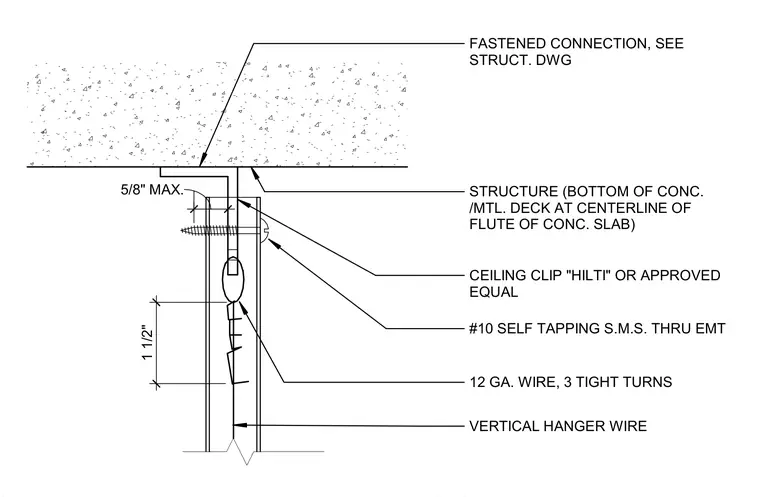

Suspended ceiling hanger wire is anchored to the underside of a concrete and metal deck slab using an approved ceiling clip fastened per structural drawings. A number ten self-tapping sheet metal screw secures the vertical wire through electrical metallic tubing with a maximum five-eighths inch clearance. Twelve-gauge vertical hanger wire is tied with three tight turns, maintaining a one-and-one-half-inch spacing.
FASTENED CONNECTION, SEE STRUCT. DWG STRUCTURE (BOTTOM OF CONC. /MTL. DECK AT CENTERLINE OF FLUTE OF CONC. SLAB) CEILING CLIP "HILTI" OR APPROVED EQUAL #10 SELF TAPPING S.M.S. THRU EMT 12 GA. WIRE, 3 TIGHT TURNS VERTICAL HANGER WIRE 1 1/2" 5/8" MAX.
