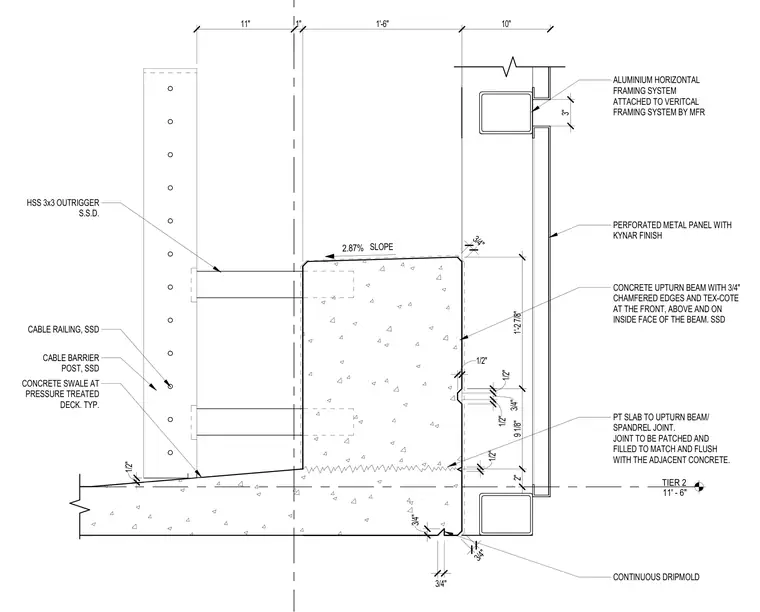

A concrete upturn beam features a 2.87 percent slope with 3/4-inch chamfered edges and Tex-Cote applied to the front, top, and inside faces. The beam is supported by a post-tensioned slab with a joint at the spandrel that is patched and filled flush with adjacent concrete. Hollow structural section outriggers measuring 3x3 inches tie back into the concrete upturn beam. A cable barrier post supports a cable railing assembly above a pressure-treated wood deck with a continuous concrete swale. A perforated metal panel with a Kynar finish attaches to an aluminum horizontal and vertical framing system anchored to the assembly.
TIER 2 11' - 6" CABLE RAILING, SSD CABLE BARRIER POST, SSD CONTINUOUS DRIPMOLD CONCRETE SWALE AT PRESSURE TREATED DECK. TYP. 2.87% SLOPE 1/2" CONCRETE UPTURN BEAM WITH 3/4" CHAMFERED EDGES AND TEX-COTE AT THE FRONT, ABOVE AND ON INSIDE FACE OF THE BEAM. SSD HSS 3x3 OUTRIGGER S.S.D. 11" 1" 1'-6" 10" 1/2" 1/2" 3/4" 1/2" 3/4" 3/4" 3/4" 1'-2 7/8" 9 1/8" 2" 3/4" PERFORATED METAL PANEL WITH KYNAR FINISH 3" ALUMINIUM HORIZONTAL FRAMING SYSTEM ATTACHED TO VERITCAL FRAMING SYSTEM BY MFR PT SLAB TO UPTURN BEAM/ SPANDREL JOINT. JOINT TO BE PATCHED AND FILLED TO MATCH AND FLUSH WITH THE ADJACENT CONCRETE. 1/2"
