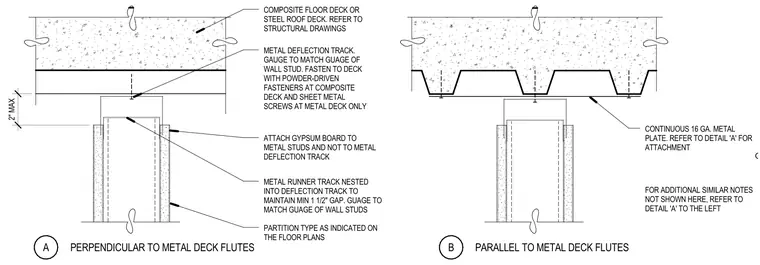

Cold-formed steel wall studs terminate below a composite floor deck or steel roof deck with a metal deflection track. The metal deflection track is fastened to the deck using powder-driven fasteners at composite decks and sheet metal screws at metal decks, maintaining a maximum two-inch gap and a minimum one-and-a-half-inch gap. A metal runner track nests inside the deflection track to match the gauge of the wall studs. Gypsum board is attached strictly to the metal studs and left unfastened to the metal deflection track. For conditions parallel to the metal deck flutes, a continuous sixteen-gauge metal plate is added below the deck per detail references.
2" MAX COMPOSITE FLOOR DECK OR STEEL ROOF DECK. REFER TO STRUCTURAL DRAWINGS METAL DEFLECTION TRACK. GAUGE TO MATCH GUAGE OF WALL STUD. FASTEN TO DECK WITH POWDER-DRIVEN FASTENERS AT COMPOSITE DECK AND SHEET METAL SCREWS AT METAL DECK ONLY ATTACH GYPSUM BOARD TO METAL STUDS AND NOT TO METAL DEFLECTION TRACK METAL RUNNER TRACK NESTED INTO DEFLECTION TRACK TO MAINTAIN MIN 1 1/2" GAP. GUAGE TO MATCH GUAGE OF WALL STUDS PARTITION TYPE AS INDICATED ON THE FLOOR PLANS CONTINUOUS 16 GA. METAL PLATE. REFER TO DETAIL 'A' FOR ATTACHMENT FOR ADDITIONAL SIMILAR NOTES NOT SHOWN HERE, REFER TO DETAIL 'A' TO THE LEFT PERPENDICULAR TO METAL DECK FLUTES PARALLEL TO METAL DECK FLUTES A B C
