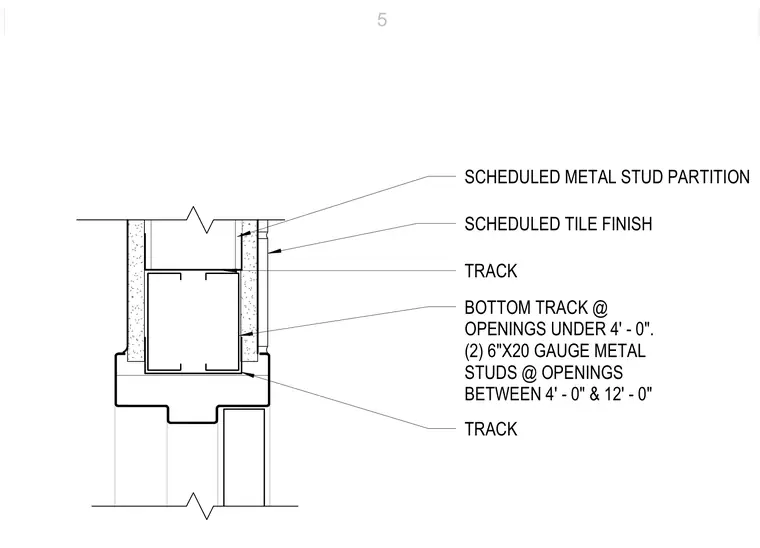

The assembly comprises a scheduled metal stud partition finished with scheduled tile over supporting layers. A metal track frames the head of the opening, receiving two six-inch twenty-gauge metal studs for openings between four and twelve feet in width. Additional bottom track framing conditions accommodate openings under four feet.
BOTTOM TRACK @ OPENINGS UNDER 4' - 0". (2) 6"X20 GAUGE METAL STUDS @ OPENINGS BETWEEN 4' - 0" & 12' - 0" TRACK SCHEDULED METAL STUD PARTITION TRACK SCHEDULED TILE FINISH 5
