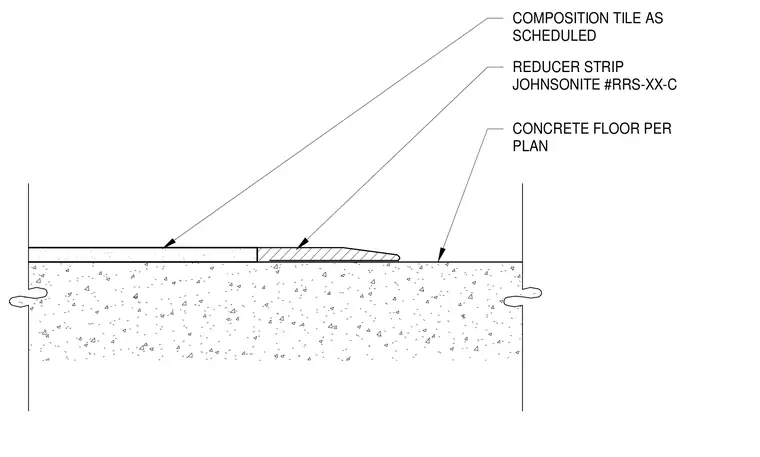

A composition tile specified per the interior finish schedule is installed over a concrete floor slab sized per plan. A Johnsonite number RRS-XX-C reducer strip transitions the change in height from the composition tile down to the exposed concrete floor.
COMPOSITION TILE AS SCHEDULED REDUCER STRIP JOHNSONITE #RRS-XX-C CONCRETE FLOOR PER PLAN
