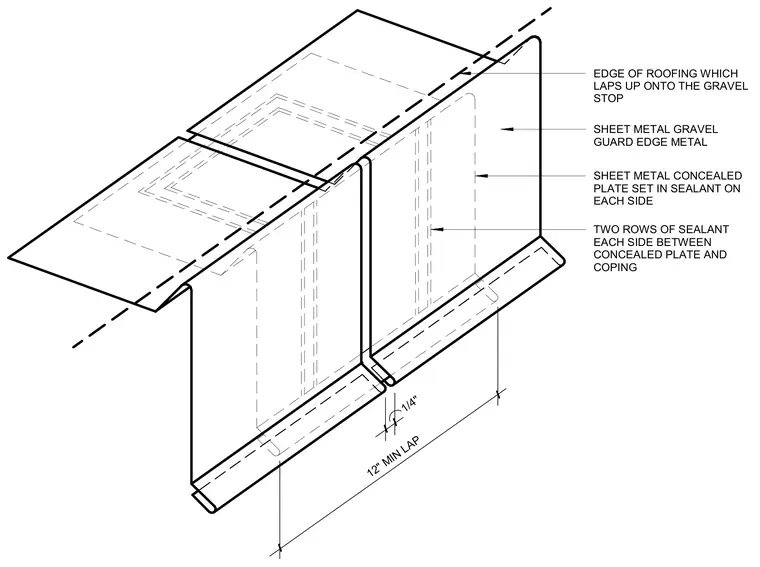

An isometric detail shows the connection of sheet metal gravel guard edge metal utilizing a concealed splice plate. The sheet metal concealed plate is set in sealant on each side with two rows of sealant positioned between the concealed plate and coping. The roof membrane edge laps up onto the gravel stop, maintaining a twelve-inch minimum lap at transitions with a quarter-inch joint spacing.
COPING CAP TRANSITIONS 12" MIN LAP SHEET METAL GRAVEL GUARD EDGE METAL SHEET METAL CONCEALED PLATE SET IN SEALANT ON EACH SIDE TWO ROWS OF SEALANT EACH SIDE BETWEEN CONCEALED PLATE AND COPING EDGE OF ROOFING WHICH LAPS UP ONTO THE GRAVEL STOP 1/4"
