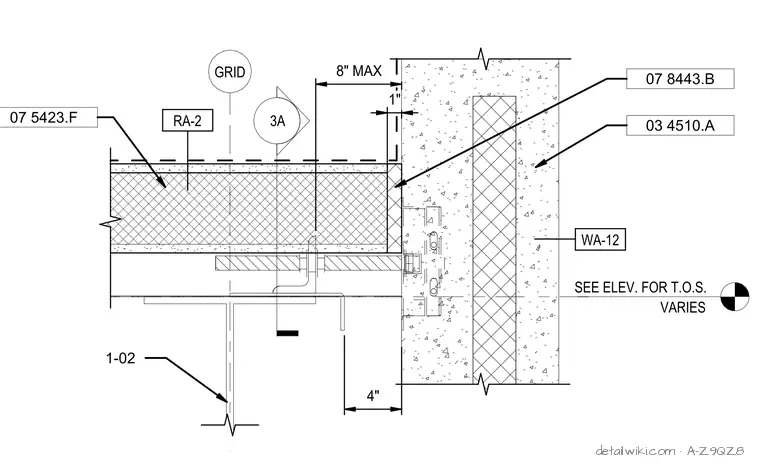

Roof assembly RA-2 intersects precast concrete wall panel WA-12 with a one-inch clearance gap at the wall termination. Structural steel member 1-02 supports the roof structure at a four-inch offset from the wall face. Material references include 07 5423.F for the roof, and 07 8443.B and 03 4510.A for the wall interface. The roof edge condition maintains a maximum eight-inch dimension relative to the wall grid line. Top of steel elevation references the building elevation drawings.
