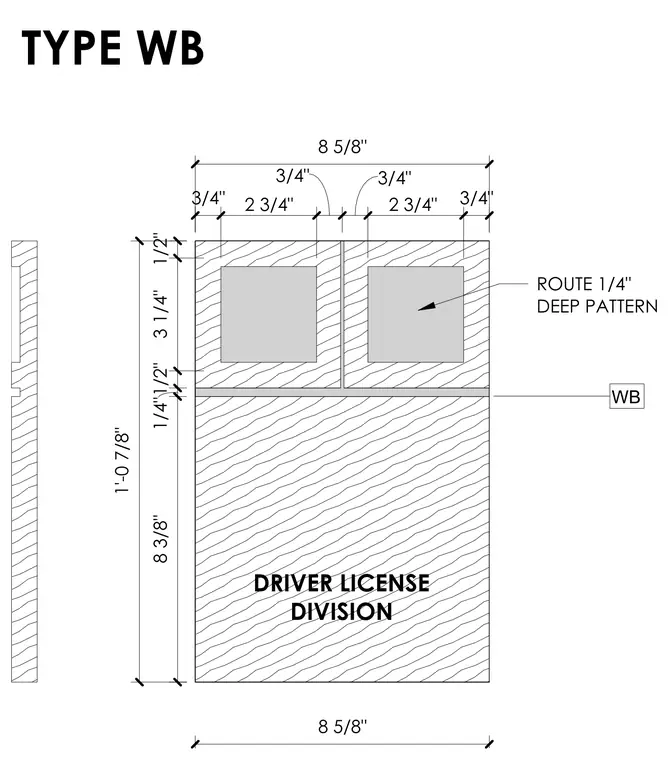

Signage panel Type WB features an overall dimension of 8-5/8 inches wide by 1'-0 7/8 inches high, incorporating a routed 1/4 inch deep pattern and text reading DRIVER LICENSE DIVISION across the lower portion. The upper portion includes two square sections separated by a vertical joint, measuring 2-3/4 inches wide by 3-1/4 inches high with 3/4 inch margins and 1/2 inch borders. The lower section measures 8-5/8 inches wide by 8-3/8 inches high with a 1/4 inch separation gap above it.
WB 1'-0 7/8" 8 5/8" 3/4" 2 3/4" 3/4" 3/4" 2 3/4" 3/4" 1/2" 3 1/4" 1/2" 1/4" 8 3/8" 8 5/8" DRIVER LICENSE DIVISION ROUTE 1/4" DEEP PATTERN TYPE WB
