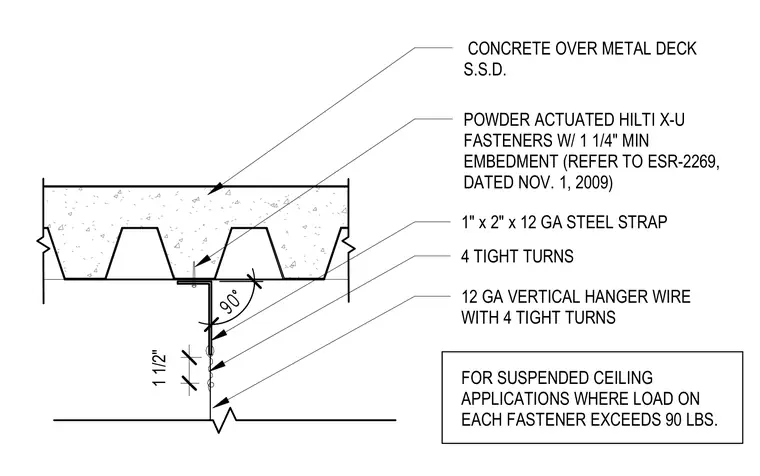

A twelve-gauge vertical hanger wire with four tight turns supports a suspended ceiling application where the load on each fastener exceeds ninety pounds. The wire connects to a one-inch by two-inch by twelve-gauge steel strap bent at a ninety-degree angle. This steel strap is anchored directly into a one-and-a-half-inch concrete over metal deck assembly using a powder-actuated Hilti X-U fastener with a one-and-a-quarter-inch minimum embedment per ESR-2269.
1 1/2" 90° CONCRETE OVER METAL DECK S.S.D. 1" x 2" x 12 GA STEEL STRAP 4 TIGHT TURNS 12 GA VERTICAL HANGER WIRE WITH 4 TIGHT TURNS FOR SUSPENDED CEILING APPLICATIONS WHERE LOAD ON EACH FASTENER EXCEEDS 90 LBS. POWDER ACTUATED HILTI X-U FASTENERS W/ 1 1/4" MIN EMBEDMENT (REFER TO ESR-2269, DATED NOV. 1, 2009)
