Architectural · A-Z93XA

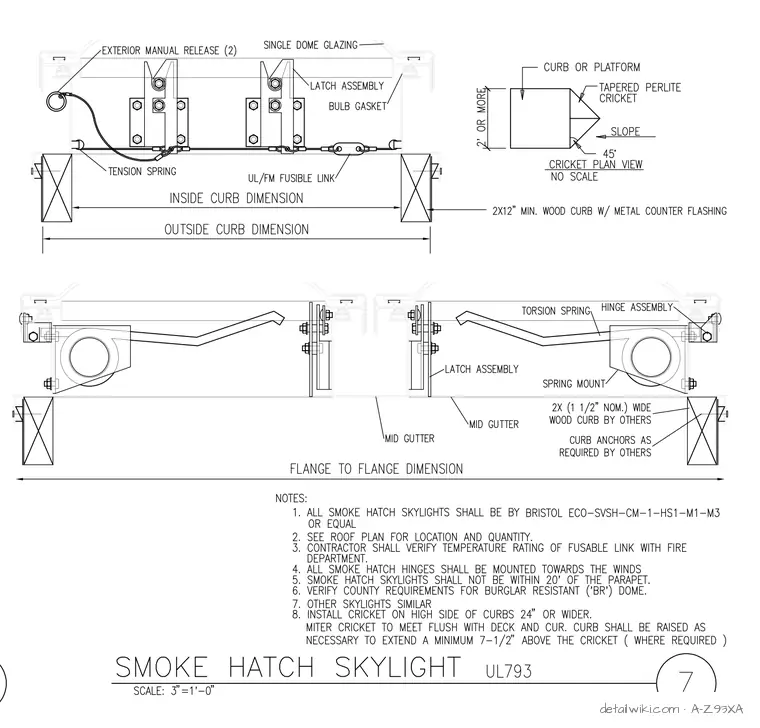

Smoke Hatch Skylight

Units: metric
Sheet: AD.3A
Discipline: Architectural

Materials

Glass / Glazing Membrane / Roofing Metal (misc.)

Elements

Roofs Skylights Waterproofing / Flashing
