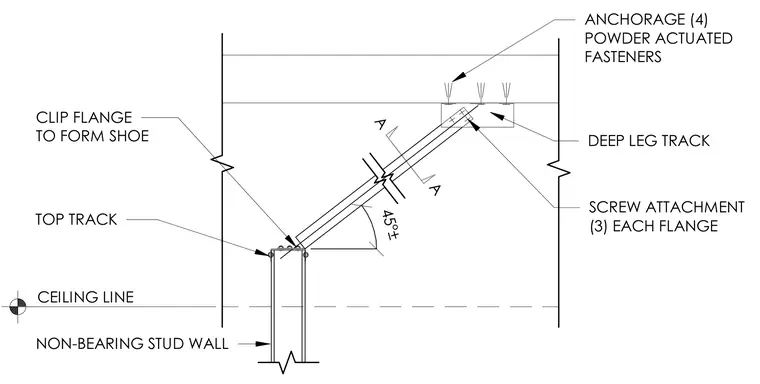

A non-bearing stud wall connects overhead with a deep leg track secured by four powder actuated fasteners. A diagonal brace at an approximate forty-five degree angle ties back to the upper track assembly. Three screws attach each flange of the clip flange to form a shoe at the top track connection.
45°± SCREW ATTACHMENT (3) EACH FLANGE CLIP FLANGE TO FORM SHOE A TOP TRACK CEILING LINE A NON-BEARING STUD WALL ANCHORAGE (4) POWDER ACTUATED FASTENERS DEEP LEG TRACK V V V
