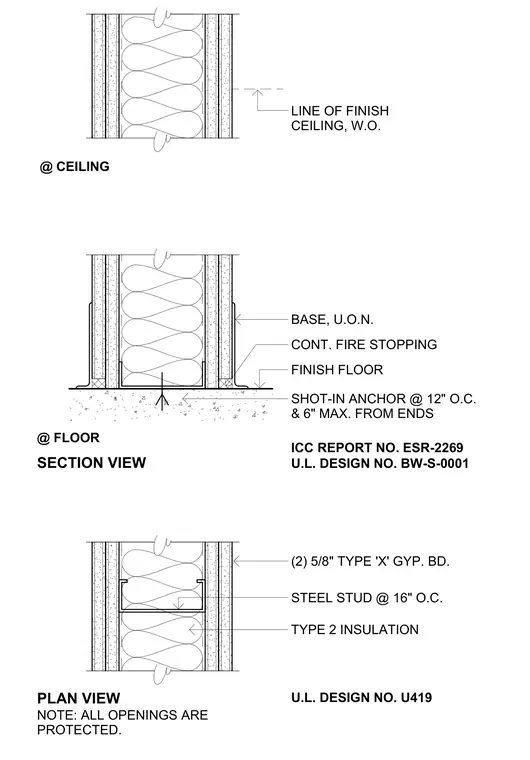

A two-hour fire-rated steel stud partition assembly comprises floor and ceiling transition sections and a horizontal plan view. The partition is constructed from steel studs spaced at sixteen inches on center with type two insulation centered in the cavity and two layers of five-eighths-inch type X gypsum board on each side. The base track is secured to the finish floor slab using shot-in anchors spaced at twelve inches on center with a maximum spacing of six inches from the ends. Continuous fire stopping is provided at the floor junction per Underwriters Laboratories design number BW-S-0001 and ICC report number ESR-2269. The wall assembly complies with Underwriters Laboratories design number U419 with all openings protected.
PLAN VIEW @ FLOOR @ CEILING ICC REPORT NO. ESR-2269 U.L. DESIGN NO. BW-S-0001 NOTE: ALL OPENINGS ARE PROTECTED. U.L. DESIGN NO. U419 LINE OF FINISH CEILING, W.O. SECTION VIEW BASE, U.O.N. CONT. FIRE STOPPING FINISH FLOOR SHOT-IN ANCHOR @ 12" O.C. & 6" MAX. FROM ENDS (2) 5/8" TYPE 'X' GYP. BD. STEEL STUD @ 16" O.C. TYPE 2 INSULATION
