A structural steel column terminates at the roof deck with an L4 x 4 x 1/4 angle brace on each side at the deck bearing, extending to the nearest joist or beam. A 1/2-inch closure plate caps the top of the column. Three-sixteenth-inch fillet welds secure the angle to the column, and typical roof deck attachments connect the deck to the angle per structural specifications.

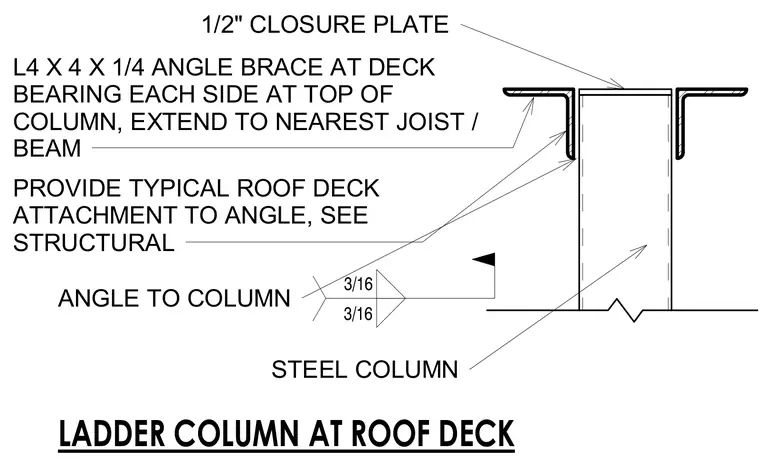

3/16 3/16 ANGLE TO COLUMN STEEL COLUMN PROVIDE TYPICAL ROOF DECK ATTACHMENT TO ANGLE, SEE STRUCTURAL 1/2" CLOSURE PLATE L4 X 4 X 1/4 ANGLE BRACE AT DECK BEARING EACH SIDE AT TOP OF COLUMN, EXTEND TO NEAREST JOIST / BEAM LADDER COLUMN AT ROOF DECK
