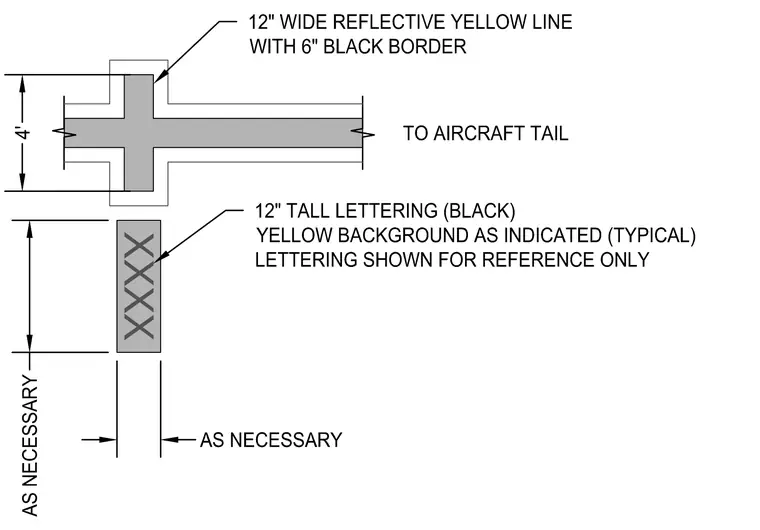

This drawing outlines the typical pavement marking specifications for aircraft parking and taxi guidance. A twelve-inch wide reflective yellow line with a six-inch black border establishes the primary path leading toward the aircraft tail, configured at a four-foot overall width. Accompanying ground text consists of twelve-inch tall black lettering set over a yellow background applied as necessary. Lettering is shown for reference only and dimensions are adjusted as required in the field.
AS NECESSARY AS NECESSARY TO AIRCRAFT TAIL 4' XXXX 12" WIDE REFLECTIVE YELLOW LINE WITH 6" BLACK BORDER 12" TALL LETTERING (BLACK) YELLOW BACKGROUND AS INDICATED (TYPICAL) LETTERING SHOWN FOR REFERENCE ONLY
