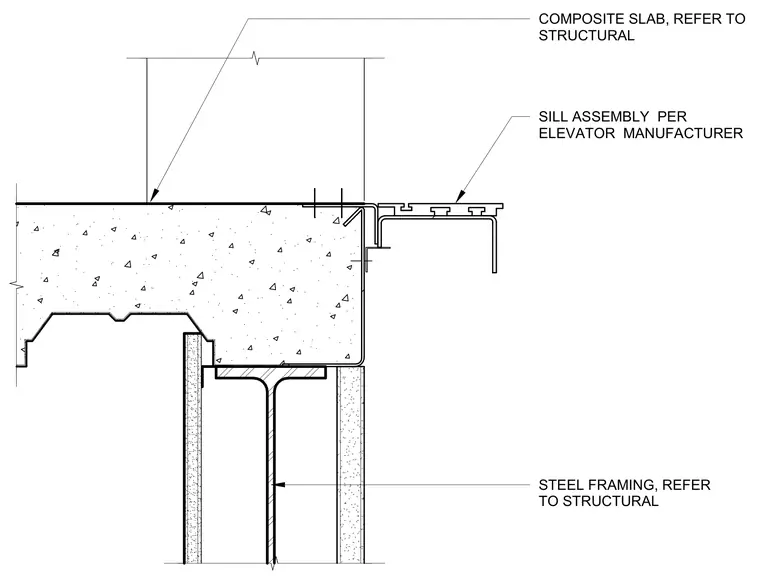

An elevator sill assembly bears on a composite concrete slab over steel framing at upper floors. The elevator manufacturer's sill assembly ties into the slab edge supported by structural steel members.
COMPOSITE SLAB, REFER TO STRUCTURAL SILL ASSEMBLY PER ELEVATOR MANUFACTURER STEEL FRAMING, REFER TO STRUCTURAL
