Architectural · A-Z7ZWP

Plan Detail Room 131

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Floors / Slabs Partitions Walls

Text on the drawing

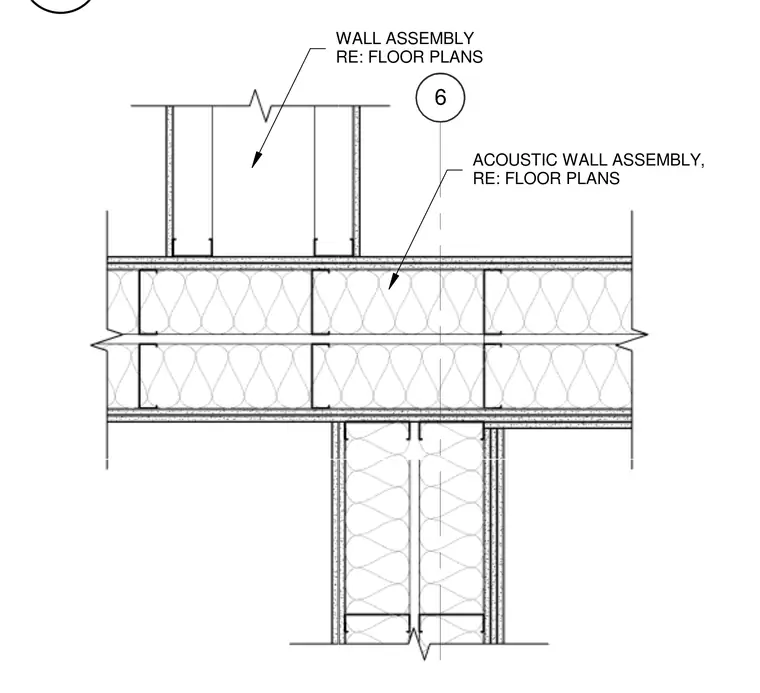

6 ACOUSTIC WALL ASSEMBLY, RE: FLOOR PLANS WALL ASSEMBLY RE: FLOOR PLANS
