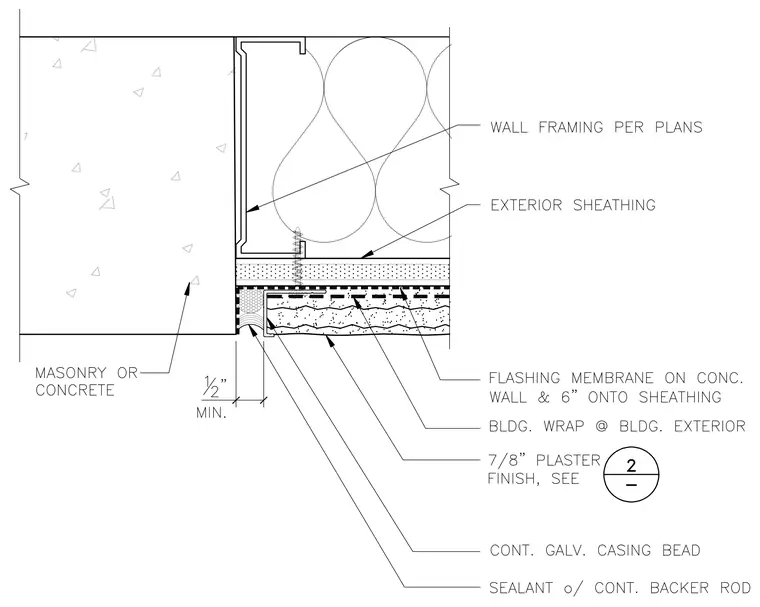

Framed exterior wall intersects a masonry or concrete substrate. Wall framing per plans receives exterior sheathing, building wrap, and a flashing membrane extending six inches onto the sheathing from the concrete wall. A seven-eighths-inch plaster finish terminates with a continuous galvanized casing bead, maintaining a one-half-inch minimum joint filled with sealant over a continuous backer rod against the masonry or concrete surface.
