Cold-formed steel wall studs are capped with a metal runner track nested into a metal deflection track to maintain a minimum 1 1/2" gap beneath a composite floor deck or steel roof deck. The deflection track is fastened to the deck with powder-driven fasteners at composite decks and sheet metal screws at metal decks. Gypsum board is attached to the metal studs and kept unfastened from the metal deflection track. Continuous 16-gauge metal plates and continuous acoustical sealant are applied on both sides at the partition head. Acoustical insulation fills the stud cavity and is shaped to fit within the deck flutes.

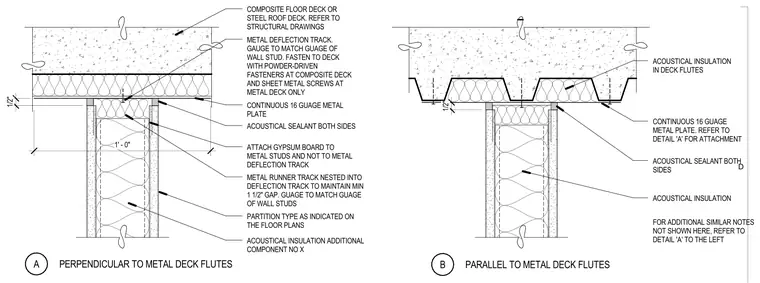

1/2" COMPOSITE FLOOR DECK OR STEEL ROOF DECK. REFER TO STRUCTURAL DRAWINGS METAL DEFLECTION TRACK. GAUGE TO MATCH GUAGE OF WALL STUD. FASTEN TO DECK WITH POWDER-DRIVEN FASTENERS AT COMPOSITE DECK AND SHEET METAL SCREWS AT METAL DECK ONLY ATTACH GYPSUM BOARD TO METAL STUDS AND NOT TO METAL DEFLECTION TRACK METAL RUNNER TRACK NESTED INTO DEFLECTION TRACK TO MAINTAIN MIN 1 1/2" GAP. GUAGE TO MATCH GUAGE OF WALL STUDS PARTITION TYPE AS INDICATED ON THE FLOOR PLANS CONTINUOUS 16 GUAGE METAL PLATE. REFER TO DETAIL 'A' FOR ATTACHMENT FOR ADDITIONAL SIMILAR NOTES NOT SHOWN HERE, REFER TO DETAIL 'A' TO THE LEFT PERPENDICULAR TO METAL DECK FLUTES PARALLEL TO METAL DECK FLUTES A B ACOUSTICAL SEALANT BOTH SIDES CONTINUOUS 16 GUAGE METAL PLATE ACOUSTICAL INSULATION ADDITIONAL COMPONENT NO X 1' - 0" 1/2" ACOUSTICAL INSULATION IN DECK FLUTES ACOUSTICAL SEALANT BOTH SIDES ACOUSTICAL INSULATION D
