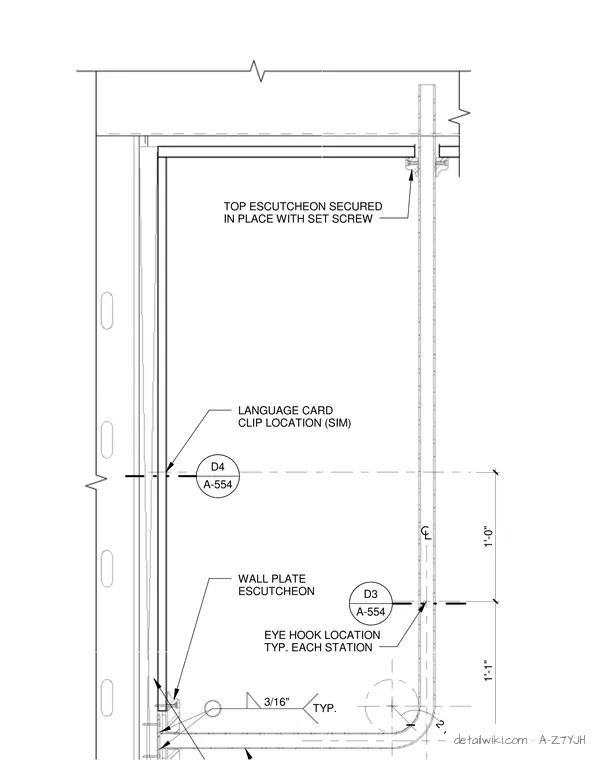

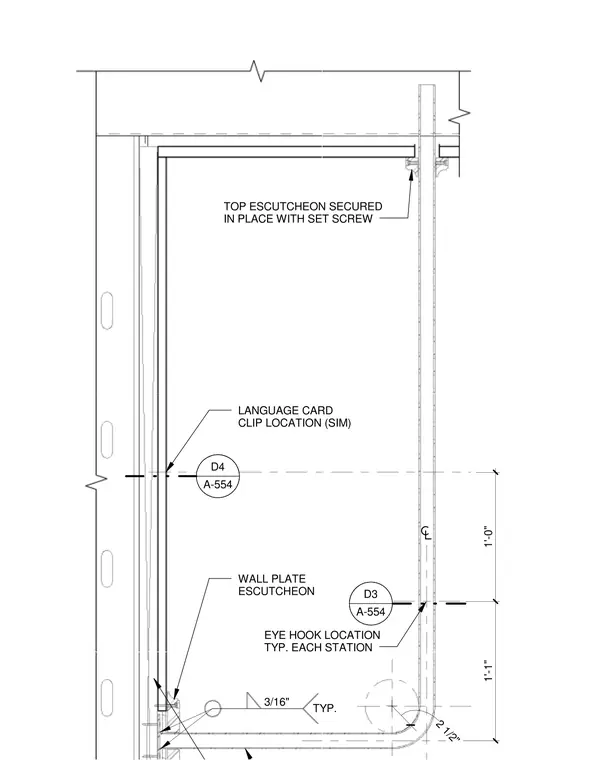

This assembly details a veil frame wall connection involving a top escutcheon secured in place with a set screw, a wall plate escutcheon, and a language card clip location marked as similar. Eye hook locations are specified typically at each station along the assembly. Vertical dimensions of one foot zero inches and one foot one inch locate the connection points, along with a radius dimension of two and one-half inches.
3/16" TYP. EYE HOOK LOCATION TYP. EACH STATION 2 1/2" 1'-0" 1'-1" LANGUAGE CARD CLIP LOCATION (SIM) D3 A-554 D4 A-554 WALL PLATE ESCUTCHEON TOP ESCUTCHEON SECURED IN PLACE WITH SET SCREW
