Accessible Electric Vehicle Charging Station Layout and Clearances

Materials

Elements

About this detail

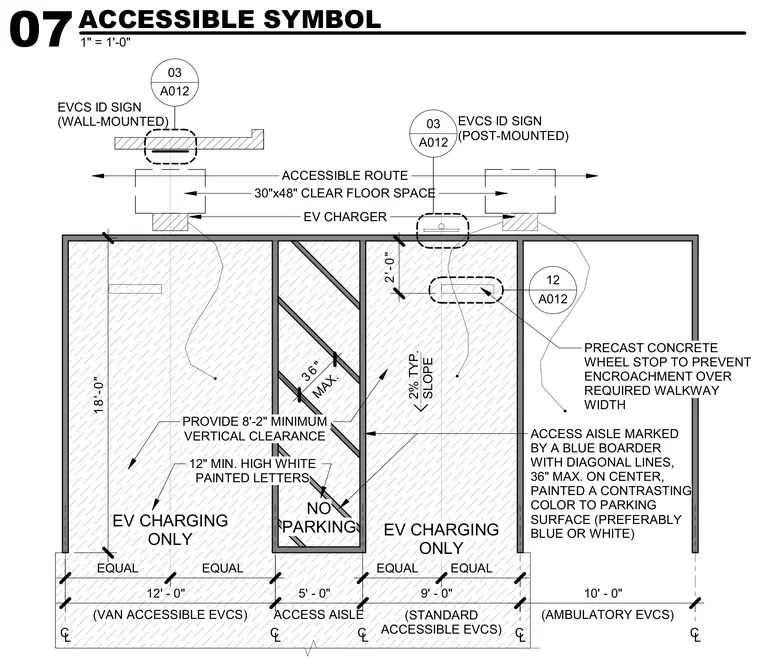

Accessible electric vehicle charging stations comprise van-accessible, standard accessible, and ambulatory stalls with associated access aisles. Parking stalls measure twelve feet, nine feet, and ten feet wide with a five-foot access aisle marked by diagonal lines at a maximum of thirty-six inches on center in blue or white. Precast concrete wheel stops are positioned to prevent encroachment over the required walkway width, and a two percent typical slope is maintained. Electric vehicle chargers feature a thirty-inch by forty-eight-inch clear floor space along an accessible route with wall-mounted or post-mounted identification signs and twelve-inch minimum high white painted pavement letters reading EV Charging Only.
