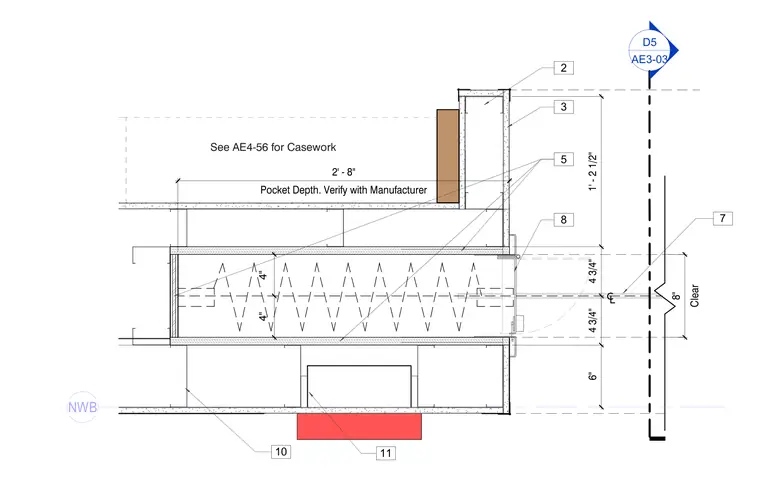

An interior partition wall detail features a two-foot eight-inch pocket depth with manufacturer verification, integrating with adjacent casework detailed on sheet AE4-56. The assembly incorporates standard metal stud framing and gypsum wallboard, providing an eight-inch clear opening for the pocket configuration.
NWB D5 AE3-03 Clear 8" 1' - 2 1/2" 4 3/4" 4 3/4" 6" Pocket Depth. Verify with Manufacturer 2' - 8" 3 2 5 7 10 11 8 4" 4" See AE4-56 for Casework
