A window sill transition over a backup wall assembly features GRC cladding mounted on vertical metal Z-girts and Cascadia clips with two inches of mineral fiber insulation. The window unit is set into a continuous silicone sealant over a membrane upturn, which ties into the continuous perimeter seal. A 1.5 by 1.25-inch aluminum back angle supports the window assembly above a prefinished sheet metal flashing with a hemmed drip edge, secured to the window manufacturer snap-in trim. A prefinished sheet metal cleat is installed over the vertical metal Z-girt, and liquid applied flashing serves as a window prestrip over the water-resistive barrier membrane. A silicone sealant heel bead is applied at the full perimeter of the interior glazed insulated glass unit.

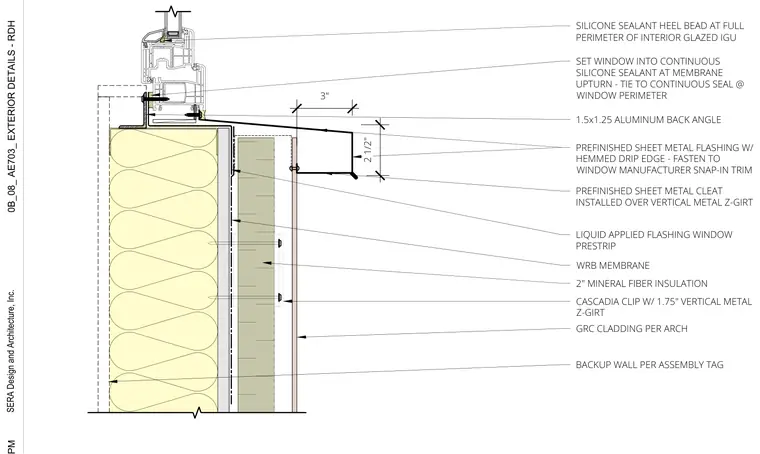

8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 LIQUID APPLIED FLASHING WINDOW PRESTRIP WRB MEMBRANE 2" MINERAL FIBER INSULATION CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL FLASHING W/ HEMMED DRIP EDGE - FASTEN TO WINDOW MANUFACTURER SNAP-IN TRIM SET WINDOW INTO CONTINUOUS SILICONE SEALANT AT MEMBRANE UPTURN - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER BACKUP WALL PER ASSEMBLY TAG PREFINISHED SHEET METAL CLEAT INSTALLED OVER VERTICAL METAL Z-GIRT SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU 1.5x1.25 ALUMINUM BACK ANGLE 3" 2 1/2" SERA Design and Architecture, Inc. 0B_08_ AE703_ EXTERIOR DETAILS - RDH
