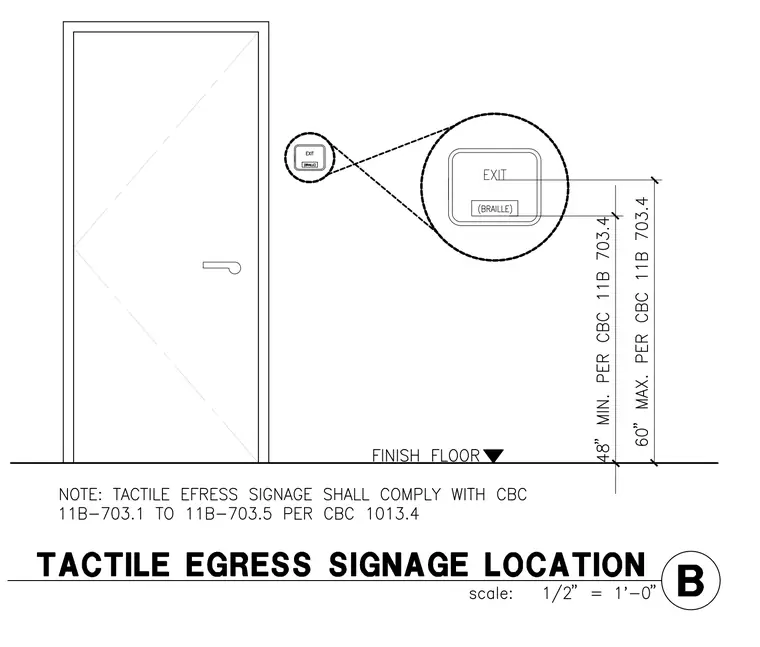

Tactile egress signage is mounted adjacent to the latch side of the door on the wall surface. The sign is positioned with a vertical clearance ranging from 48 inches minimum to 60 inches maximum above the finish floor to the centerline of the sign, complying with California Building Code requirements.
