Metal studs sized per plans are faced with one layer of Type X gypsum board on one side. The wall assembly terminates at the floor below and structure above, sealed continuously with scheduled sealant. The ceiling line intersects the partition wall at a height coordinated per the reflected ceiling plan.

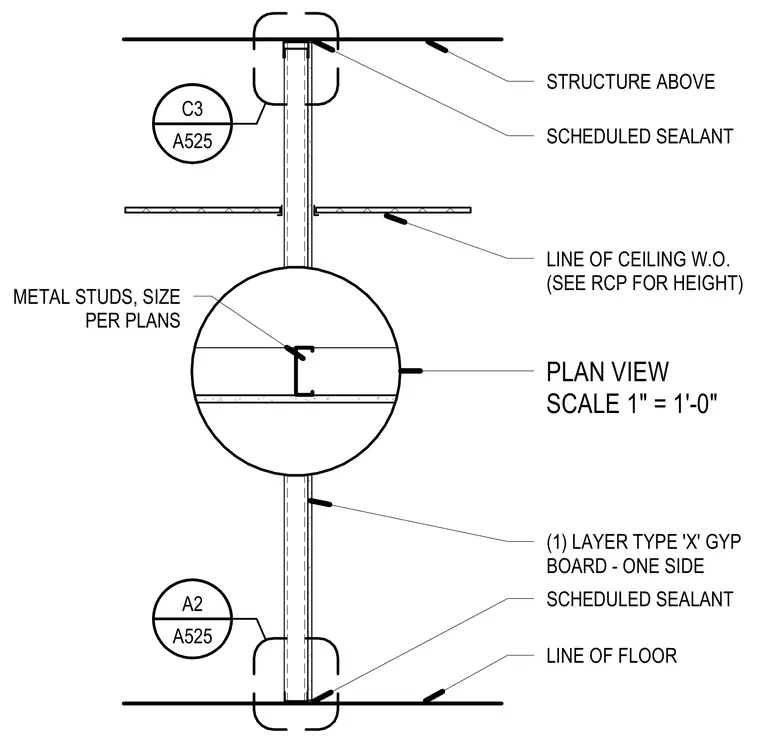

PLAN VIEW SCALE 1" = 1'-0" STRUCTURE ABOVE LINE OF FLOOR SCHEDULED SEALANT LINE OF CEILING W.O. (SEE RCP FOR HEIGHT) SCHEDULED SEALANT (1) LAYER TYPE 'X' GYP BOARD - ONE SIDE METAL STUDS, SIZE PER PLANS A525 C3 A525 A2
