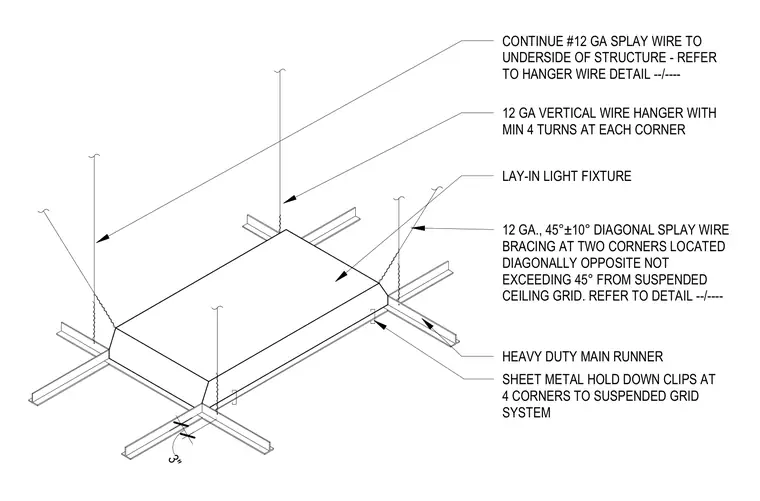

A lay-in light fixture is integrated into a heavy-duty main runner suspended ceiling grid using twelve gauge vertical wire hangers with a minimum of four turns at each corner. Four sheet metal hold-down clips secure the fixture corners to the grid system. Twelve gauge diagonal splay wire bracing is installed at two diagonally opposite corners at a forty-five degree angle, continuing to the underside of the structure.
12 GA VERTICAL WIRE HANGER WITH MIN 4 TURNS AT EACH CORNER LAY-IN LIGHT FIXTURE 12 GA., 45°±10° DIAGONAL SPLAY WIRE BRACING AT TWO CORNERS LOCATED DIAGONALLY OPPOSITE NOT EXCEEDING 45° FROM SUSPENDED CEILING GRID. REFER TO DETAIL --/---- CONTINUE #12 GA SPLAY WIRE TO UNDERSIDE OF STRUCTURE - REFER TO HANGER WIRE DETAIL --/---- HEAVY DUTY MAIN RUNNER 3" SHEET METAL HOLD DOWN CLIPS AT 4 CORNERS TO SUSPENDED GRID SYSTEM
